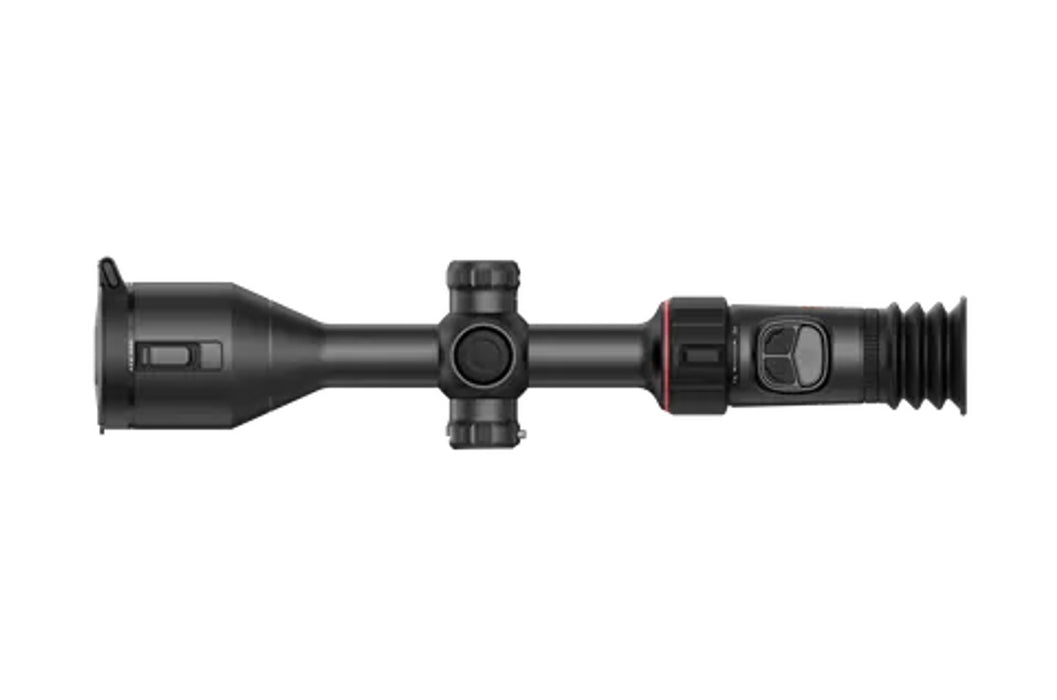

Introducing the ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.
Superior Sensor Ensures Excellence
Equipped with a Gen-2 HD thermal sensor offering a resolution of up to 1280×1024 and a frame rate of up to 60Hz, the ACE provides stable performance with an NETD≤15mK. This enables it to detect even the slightest temperature variations, delivering exceptionally detailed and smooth thermal imagery, even when tracking fast-moving prey.
Enhanced Clarity with Larger Lens
The ACE series feature 60mm/F1.0 or 50mm/F0.9 lenses. The larger objective lens allows 20% more light to reach the sensor. Coupled with high-transmittance lens elements, it generates brighter and clearer images.
Long-Distance Detection at Ease
The ACE series boasts an impressive detection range of up to 3100 meters. This capability allows clear identification of distant targets, providing a significant advantage for long-range hunting.
Reality+ Imaging Enhancement
Our proprietary Reality+ image processing algorithm effectively eliminates environmental temperature noise, enhancing contrast and detail clarity.
New Vision+ System with Ocular Zoom
The new Vision+ system features a 1.03-inch round 2560×2560 AMOLED screen and industry-leading ocular zoom for direct optical magnification. Unlike traditional e-zoom, it prevents blurring and distortion in close-up views. Enjoy high-resolution images and a broader field of view for an immersive and comfortable observation experience.
Eliminate Battery Capacity Concerns
The ACE employs a dual-battery system with a 4000mAh built-in battery and an additional replaceable 18650 battery. This setup meets the demands of prolonged outdoor hunting sessions.
Designed for Hunting and Shooting
The ACE includes essential features for hunting scenarios such as ballistic calculations, auto screen shutdown, recoil-activated video recording, and a shutterless design, making perfect hunting achievable.
Outdoor-Friendly Design
The ACE incorporates thoughtful features such as a focus adjuster, charging cover, and a Gallery feature for direct video playback, significantly enhancing user convenience.
Rigorous Testing & High-durability
Crafted from high-strength aluminium alloy, the ACE undergoes rigorous impact resistance testing, ensuring exceptional robustness and durability for years to come.
Model
ACE H50
Detector Specifications
Thermal sensor
640x512 & 12μm
NETD, mK
≤ 15
Frame rate, Hz
60
Optical Specifications
Objective lens, mm
50 F0.9
Field of view (H×V), °/m@ 100m
8.8x7.0/15×12
Magnification, ×
3~24
Ocular zoom, ×
1~3
Exit relief, mm
50
Exit pupil diameter, mm
8
Diopter, D
-5~5
Display Specifications
Type
1.03inch AMOLED
Resolution
2560x2560
Battery
Battery
Built-in 4000mAh & 18650 battery
Max. operation time, (t=22℃) h
7
Physical Specifications
Ballistic calculation
Yes
Photo & Video & Audio recording
Yes
Memory capacity, GB
64
WIFI & APP
Yes
Weight, g (with battery)
1120
Dimension, mm
365×90×68
